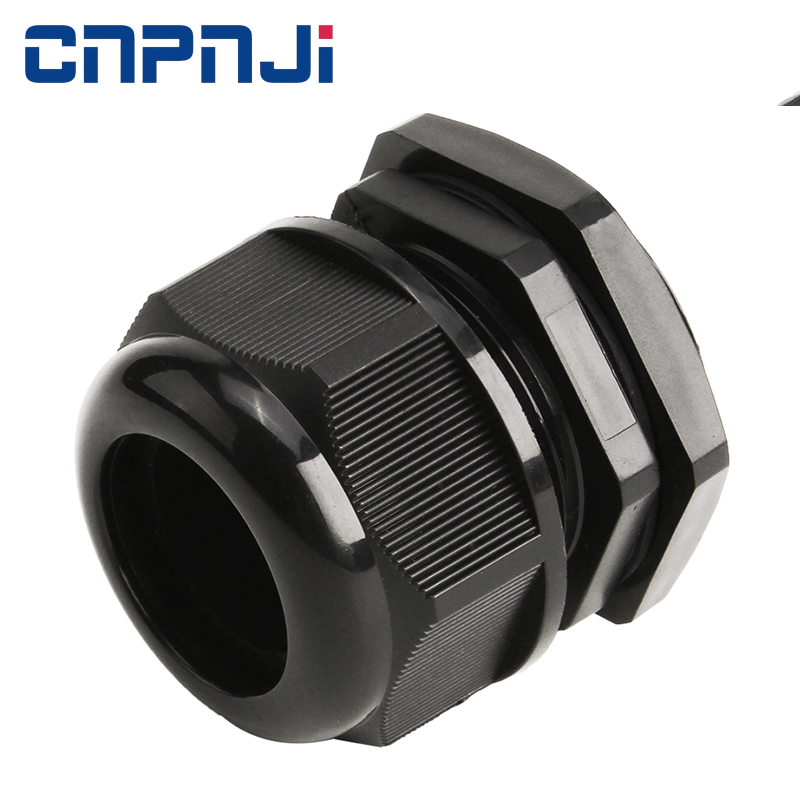

Nylon cable gland

IP68 Metric PG Size Flexible Cable Glands M25

M25

minimum order

200

Quantity:

USD0.09 - USD12.82

Contact Now

add to cart

Verification Code

captcha

Message Content

Country

Email

Color:Black and White
Usage:Lock Cable Tight
Thread:Metric PG NPT G Standard
Function:Water-prooftesting
Product name:Nylon 66 Cable Glands
Advantages:Screw Plug
Certificate:CE RoHS IP68 UL
Cable Range:12.5-18mm
Product Material:Nylon PA66
Key Words:Nylon Threaded Plug
Protection Level:IP68
Material:Nylon
Place of Origin:CN;ZHE
Brand Name:CNPNJI
Model Number:M25
Size:M25

Product Description

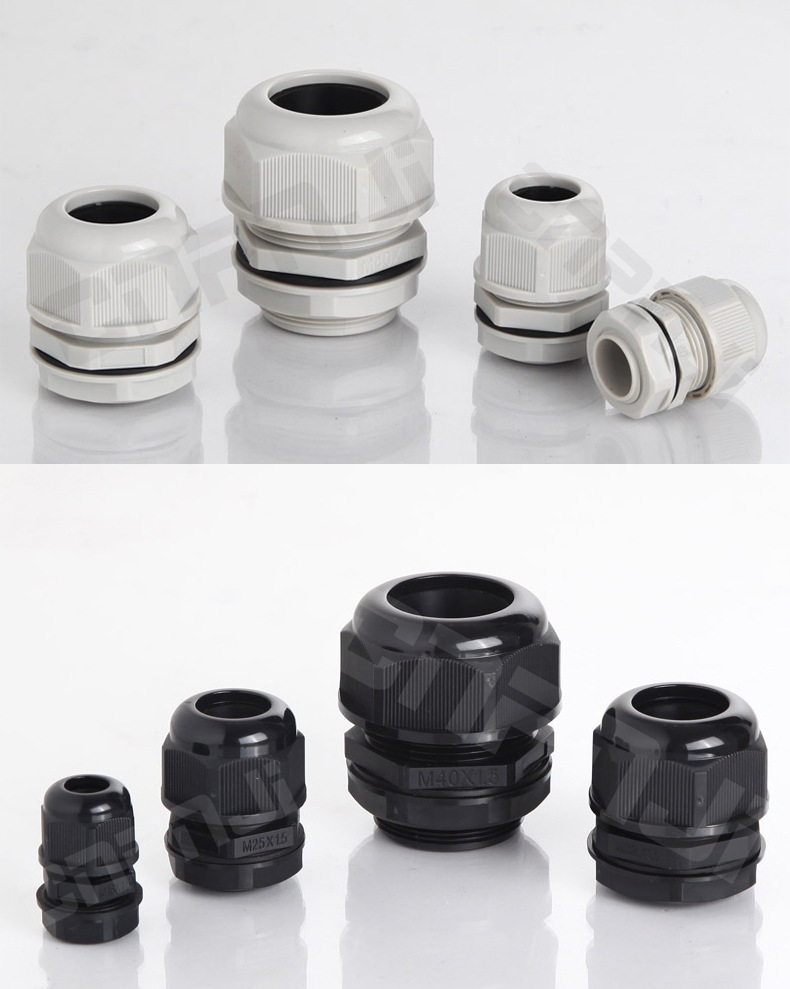

Product Picture	Nylon Cable Glands
	Thread Type	Metric thread in compliance with EN60423
	Thread Size	M25*1.5

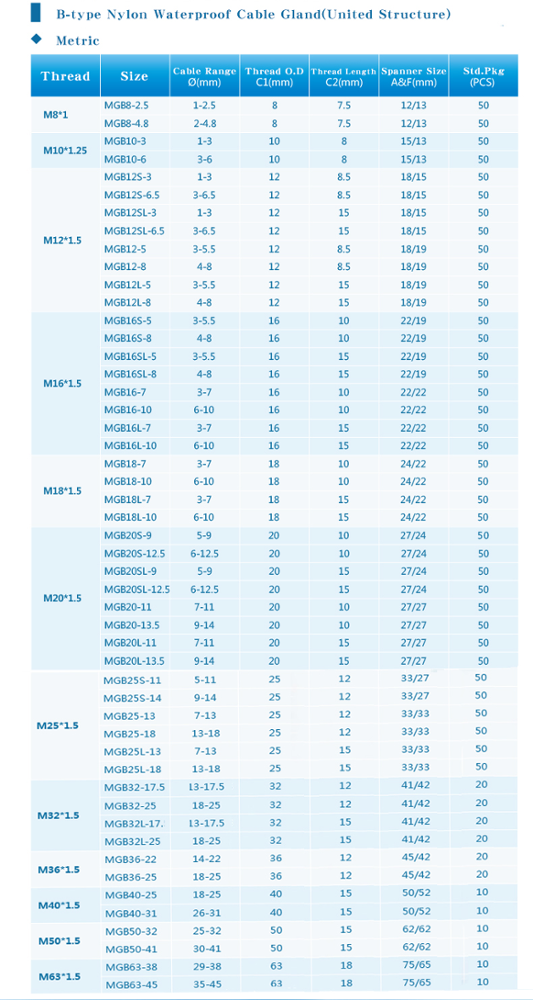

	Model	MGB25S-11	MGB25S-14	MGB25-13	MGB25-18	MGB25L-13	MGB25L-18
	Cable Range(mm)	5-11	9-14	7-13	13-18	7-13	13-18
	Thread O.D(mm)	25	25	25	25	25	25
	Thread Length(mm)	12	12	12	12	15	15
	Spanner Size(mm)	33/27	33/27	33/33	33/33	33/33	33/33

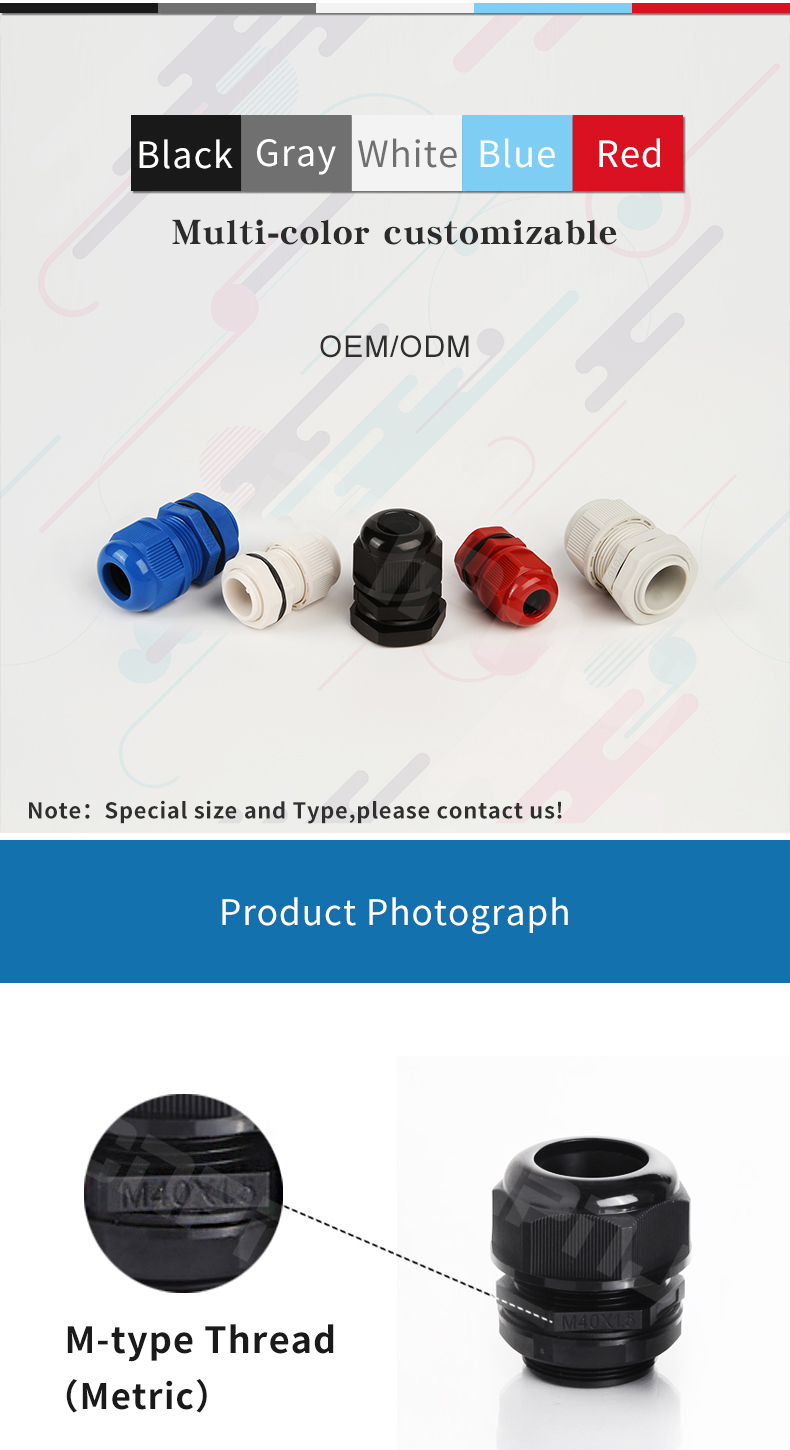

Color	Black /L.Gray /Customized colors

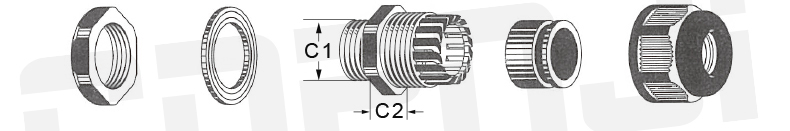

Material	Nylon PA66( UL approved) for parts A,C,F; EPDM for parts B, D (NBR available in oil and grease resistant, pls contact us).
IP Class	IP68-10
Working temperature	-40°C~100°C (-40°F~212°F)
Application	The Nylon cable gland is designed with special seal and claw, which has a good performance of strain relief, watertihgt over the entire cable range from rariety of sizes. and it is widely used in Electrical and electronics equipments, machines,instruments, solar panels, junction boxes, switches, lightings, sensors, power supplies, power inverters, vehicles, trains and any other type of advices.
Certification	CE/RoHS/SGS/IP68/UL
MOQ	Small order can be accepted
Payment term	T/T / Cash / WestUnion / Paypal
Delivery Time	5working days if in stock
Packaging	50/100PCS per bag with label,export standard carton
Design ability	We can supply sample, OEM & ODM is welcomed (Design, Engineering, Photographing, Sample, Production)

Company Information

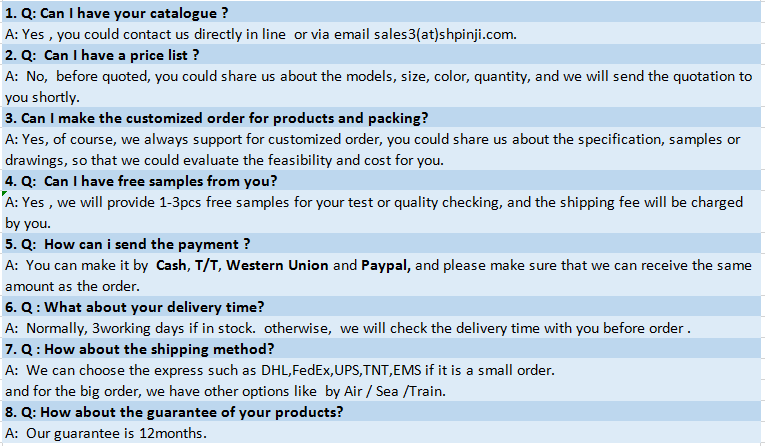

FAQ
